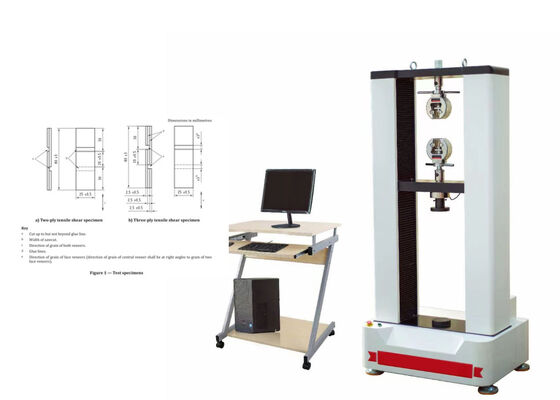

Electronic Universal Testing Machine
Combining robust mechanical structure with sophisticated electronics for operation, this universal testing machine is purpose-built for assessing physical and mechanical properties of wood materials and functions as mandatory inspection equipment for testing wood's compressive strength, flexure strength, tensile strength, shear strength, nail-holding power and other core performance metrics.
Applications
This equipment enjoys wide-ranging application coverage across multiple domains including:
- Aerospace sector
- Petrochemical industry
- Mechanical fabrication
- Wire and cable manufacturing
- Textile and fiber processing
- Plastic and rubber fabrication
- Ceramic material manufacturing
- Food processing
- Healthcare packaging
- Aluminum-plastic pipeline fabrication
- Plastic door and window manufacturing
- Geotextile processing
- Film material fabrication
- Wood processing
- Paper manufacturing
- Metal material processing
Fully aligned with testing specifications including GB, JIS, ASTM, DIN and ISO standards, the equipment automatically captures and outputs full test data covering maximum test force value, fracture force value, yield strength, upper and lower yield strength, tensile strength, elongation at break, tensile elastic modulus, bending elastic modulus, shear strength and other required test indicators.
Control Modes
The embedded operating system is configured with 7 distinct control modes:
- Constant Speed Mode: Crosshead travels at fixed uniform speed until specimen fractures
- Fixed Displacement Mode: Crosshead travels at constant speed until reaching pre-defined position
- Constant Load Speed Mode: Crosshead travels at steady load change rate until specimen fractures
- Fixed Load Mode: Crosshead travels at constant speed until reaching pre-specified load value
- Constant Strain Increase Rate Mode: Crosshead travels at uniform strain increment rate until specimen fractures
- Constant Stress Increase Rate Mode: Crosshead travels at uniform stress increment rate until specimen fractures
- Constant Stress-Strain Switching Mode: Optimized for metallic materials, automatically switches from stress to strain rate after yielding
Technical Parameters
| Model |
XWW-10KN |
| Type |
Double screw |
| Max. Load |
10KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
| Measurement range (Metal extensometer) |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
| Measurement range (Large deformation) |
5mm-1000mm |
| Error of indication |
Within±0.5% |
| Resolution |
0.001mm |
| Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test width |
400mm (or according needing) |
| Total Crossbeam Valid Travel |
900mm |
| Clamps |
Compression plate |
| PC System |
Control force, displacement and deformation |
| Power Supply |
AC220V; 400w |
| Standards |
ISO 3346, ISO 3133, ISO 3129, ISO 6237, ISO 9087 etc |
| Weight |
280Kg |
Customization
Our bespoke customization service delivers optimized Electronic Universal Testing Machine configurations that fully align with each client's unique application requirements. This unit comes with core specifications including a 600mm tensile space, overall dimensions of 1000mm×800mm×2000mm, 1000mm maximum stroke, and a test force range spanning 3kN to 300kN. It is further fitted with a multi-tier safety protection system, covering overload protection, over-travel interlock, over-voltage protection and over-current protection.
This Electronic Universal Testing Machine stands as a premium option for all users seeking reliable, high-performance inspection equipment dedicated to tensile strength measurement. Supported by its reinforced safety protection mechanisms and fully customizable configuration options, clients can always secure the most suitable testing solution tailored to their actual operation demands.
Packing and Shipping
Every Electronic Universal Testing Machine unit undergoes rigorous, precision-oriented packaging procedures before dispatch. We deploy a full set of protective cushioning materials, including air bubble sheeting, shock-absorbing foam padding and other impact-resistant packaging supplies, to deliver all-round shock and collision isolation for the equipment.
Prior to loading onto outbound delivery vehicles, the fully wrapped unit will be firmly secured to a heavy-duty shipping skid to eliminate any risk of displacement or impact during transit. All shipments will be arranged exclusively via reputable, fully insured professional freight logistics providers.
Frequently Asked Questions
Q1: What category of specialized inspection equipment does the Electronic Universal Testing Machine fall under?
A1: The Electronic Universal Testing Machine is a dedicated material testing apparatus designed to quantify core mechanical performance indicators of raw materials, including tensile strength, compression strength, modulus of elasticity and elongation rate.
Q2: What ranges of test specimens are compatible with Electronic Universal Testing Machines?
A2: Electronic Universal Testing Machines support performance verification for a broad spectrum of material categories, encompassing metallic materials, plastics, elastomers and composite materials.
Q3: What level of measurement precision can Electronic Universal Testing Machines deliver?
A3: Electronic Universal Testing Machines boast industry-leading measurement accuracy, with testing deviation strictly controlled within ±0.5% of the actual verified value.
Q4: What standardized testing procedures can be executed with Electronic Universal Testing Machines?
A4: Electronic Universal Testing Machines support multiple mainstream testing protocols, including tensile testing, compression testing, flexure testing, shear testing and tear testing.
Q5: What core application advantages do Electronic Universal Testing Machines provide?
A5: The Electronic Universal Testing Machine offers a cost-efficient, high-precision solution for material mechanical property validation. It also features intuitive operation workflows and is capable of generating reliable test results within a short timeframe.
