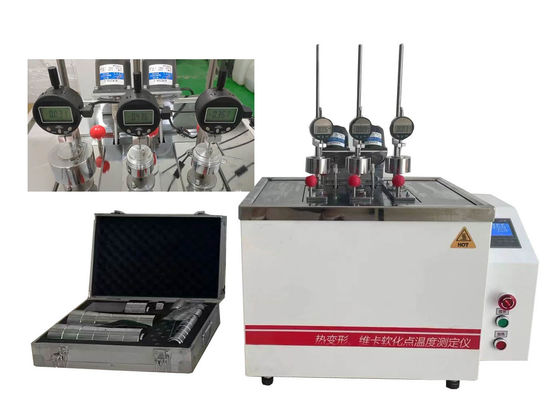

Advanced HDT VICAT Testing Machine for Real-time Monitoring of Thermal Deformation and Softening Point Measurement
Overview
The ASTM D648 Thermal Deformation Vicat Softening Point Tester (also referred to as Vicat Test Apparatus, HDT) adopts a PLC programmable logic controller for temperature control and features computer-based display and operation.
This tester offers distinct advantages including user-friendly operation, ease of use, stable performance, and high measurement accuracy. It enables real-time monitoring of test temperature and deformation throughout the entire testing process—ensuring full visibility of key test parameters.

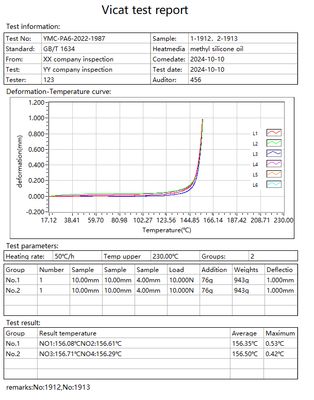

Upon completion of the test, the system automatically terminates the heating process. It also supports the generation and printing of detailed test reports and test curves, facilitating efficient data documentation and analysis.
This series of testers serves as an essential testing instrument for quality inspection institutions, universities, and enterprise in-house quality control (QC) departments, supporting rigorous material performance validation in compliance with relevant standards.
Product Introduction
The Thermal Deformation Vicat Test Apparatus With Test Stand Lifting System is engineered to align with the rapid advancement of the plastics industry and elevate the standards of material research and testing.
These apparatuses are designed in strict compliance with the latest international and national standards, including:
- ISO 75-1:1993 (Plastics — Determination of temperature of deflection under load)
- ISO 306:1994 (Plastics — Thermoplastic materials — Determination of Vicat softening temperature (VST))
- GB/T 1633—2000 (Thermoplastic materials — Determination of Vicat softening temperature (VST))
- GB/T 1634—2001 (Plastics — Determination of temperature of deflection under load)
Computer-controlled, these apparatuses boast stable performance, user-friendly operation, and a high degree of automation. As such, they stand as the most advanced testing instruments for measuring the heat deflection temperature and Vicat softening temperature of non-metallic materials—effectively supporting material performance validation in R&D, quality control, and compliance testing scenarios.
Test Standards
GB/T 1633, GB/T 1634, GB/T 8802, ISO75-2013, ASTM D 648, ASTM D 1525, ISO 2507
Technical Parameters
| Model |
XRW-300E |
| Technical data |
- Equipped with 6 stations (Ability to test 6 samples simultaneously)
- Automatic performance: A left for moving the samples
- Air above 150 Degree centigrade, 150 Degree centigrade the following water or natural cooling
- Deformation measurement: High precision digital display dial gauge
- Heating Rate: 50°C/h, 120°C/h
- Max. Temperature Deviation: ±0.5°C
- Deformation deviation: 0.01mm
- Vicat load: 10N ± 0.2 N , 50N ± 1N
- Fiber stress: 0.455 Mpa and 1.82 Mpa
- Temperature-control Range: room temperature ~ 300°C
- Deformation Measuring Rage: 0 ~ 10mm
- Sample Frame Number: 3
- Test Span: 60~120mm
- Heating Power: 6KW
- Power Supply: 220V 50Hz
- Display: Color touch screen
|
| Type and display |
Desk type Using PC control system |
| Standards |
GB/T1633, GB/T1634, ISO75, ISO306,ASTM D648, ASTM D1525,ISO 2507 |
| Usage |
Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges. |
| Configuration |
- Main frame 1 set
- Electric cabinet 1 set
- Specimen holder 3 sets(or 3 sets)
- Vicat indenter 3 sets
- Heat deflection indenter 3 sets
- Displacement sensor 3 sets
- Power line 2 sets
- Connecting line 2 sets
- Operation manual 1 set
- Certificate 1 set
- Packing list 1 set
|
Frequently Asked Questions
Q: What is the brand name of the VICAT Testing Machine?
A: The official brand name of the VICAT Testing Machine is JINHAIHU.
Q: What is the model number of the VICAT Testing Machine?
A: The model number of the VICAT Testing Machine is XRW-300F.
Q: What certification does the VICAT Testing Machine have?
A: The VICAT Testing Machine holds ISO 9001 certification, ensuring compliance with international quality management system standards for reliable manufacturing and performance.
Q: Where is the VICAT Testing Machine manufactured?
A: The VICAT Testing Machine is manufactured in Beijing, China, with production carried out in a standardized facility to guarantee consistent product quality.
Q: What is the minimum order quantity of the VICAT Testing Machine?
A: The minimum order quantity (MOQ) of the VICAT Testing Machine is 1 set per order, accommodating both small-batch and large-scale procurement needs.
Q: What is the price range of the VICAT Testing Machine?
A: The price range of the VICAT Testing Machine is 2,400-6,000 USD, which varies based on configuration details (e.g., optional accessories, customization requirements).
Q: What is the supply ability of the VICAT Testing Machine?
A: The VICAT Testing Machine has a monthly supply capacity of 15 sets, sufficient to meet regular order demands and support timely delivery for bulk purchases.
Q: What is the delivery time for the VICAT Testing Machine?
A: The delivery time for the VICAT Testing Machine is 10-15 working days after order confirmation, excluding international shipping transit time.
Q: How is the VICAT Testing Machine packaged?
A: The VICAT Testing Machine is packaged in sturdy standard export wooden cases, designed to protect the equipment from damage during international transportation and handling.
Q: What are the payment terms for the VICAT Testing Machine?
A: The payment terms for the VICAT Testing Machine include but are not limited to: T/T (Telegraphic Transfer), L/C (Letter of Credit), D/A (Documents Against Acceptance), D/P (Documents Against Payment), Western Union, and MoneyGram—offering flexibility to align with global procurement practices.
